console gauge

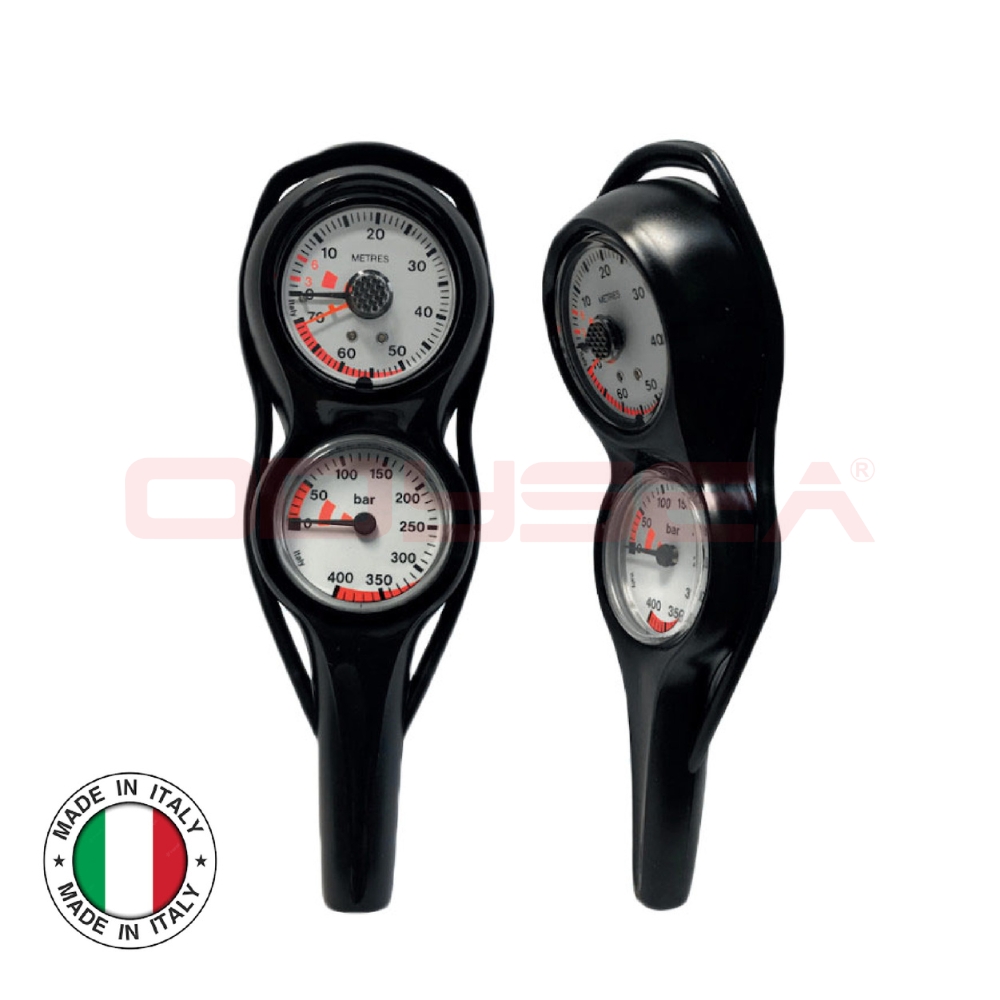

With a brand new design, the EVO LINE is the third generation of SPG mini line gauge boot. Thanks to a special processing of the mold, the EVO LINE cover is much more softer and comfortable, but at the same time it has a higher grip and a stronger impact resistance. The EVO LINE is very easy to read and its rounded profile brings out its ergonomic shape and exalts its proficiency.
All one piece brass body; Copper Beryllium spiral wound; Bourdon tube; Polycarbonate transparent window; Plastic cover with loop for fixing; Graduation 400 BAR / 5000 PSI, full scale.
Luminous easy to read dial design; Red zone from 0 to 50 BAR / 0 to 600 PSI; Increments 10 BAR / 100 PSI, all over the scale.

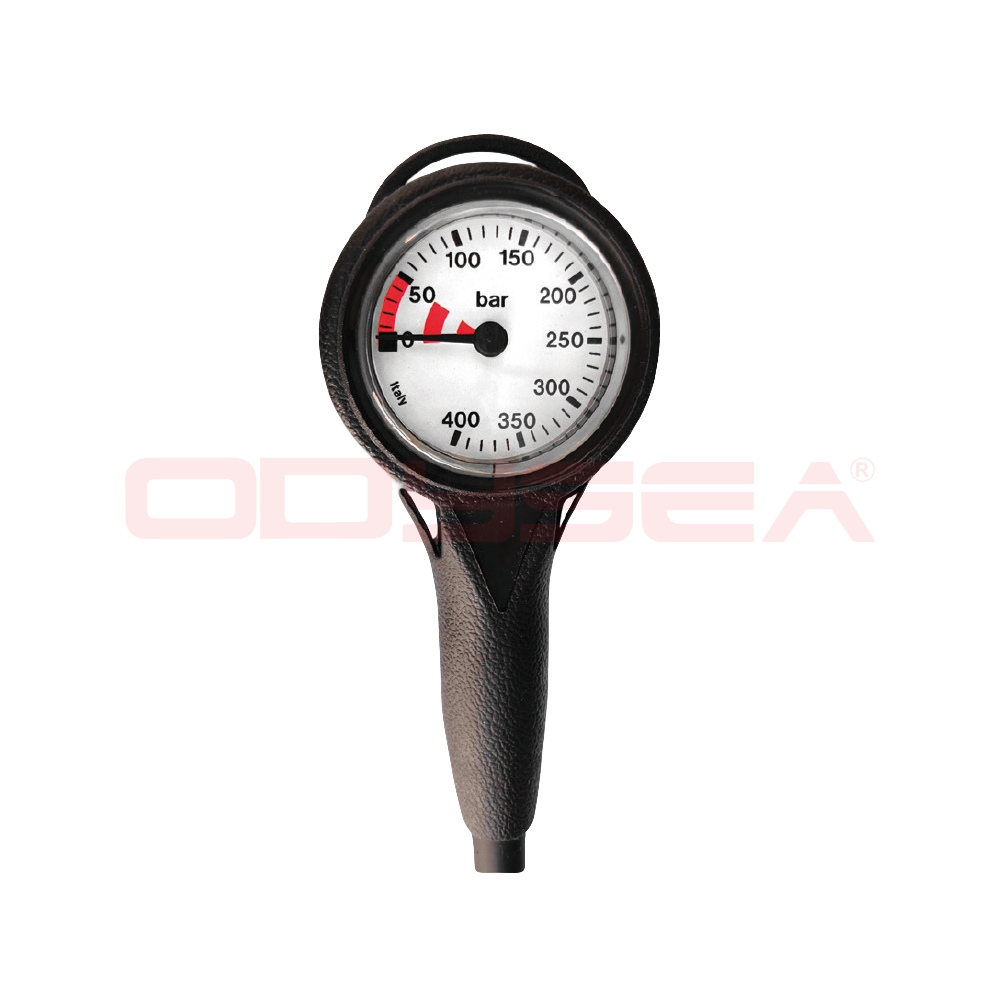

Single Pressure Gauge
The mini pressure gauge is a small, light-weight gauge that has been specifically designed to avoid excessive strain on the HP hose that connects to the first stage of the regulator.
The instrument has a metal case in chromium plated brass and is therefore extremely strong.
The front glass is made so that it also acts as a pressure relief valve. In the event of a sudden increase in pressure inside the instrument, the glass rises slightly, allowing the excess pressure to escape.
The luminescent dial is calibrated up to 350 in the metric version and 5000 psi in the imperial one. The area below 50 is highlighted in red, the one between 50 and 200 is green and that from 200 to the end of the scale is light blue.
The instrument is housed in a small, modern shaped console, made from polycarbonate and, two materials that guarantee protection from shocks and scratches and which, at the same time, are very light.
In the upper part of the protective shell there is a loop for fastening the instrument to the jacket so that it does not hang down with the risk of catching and damaging the environment.

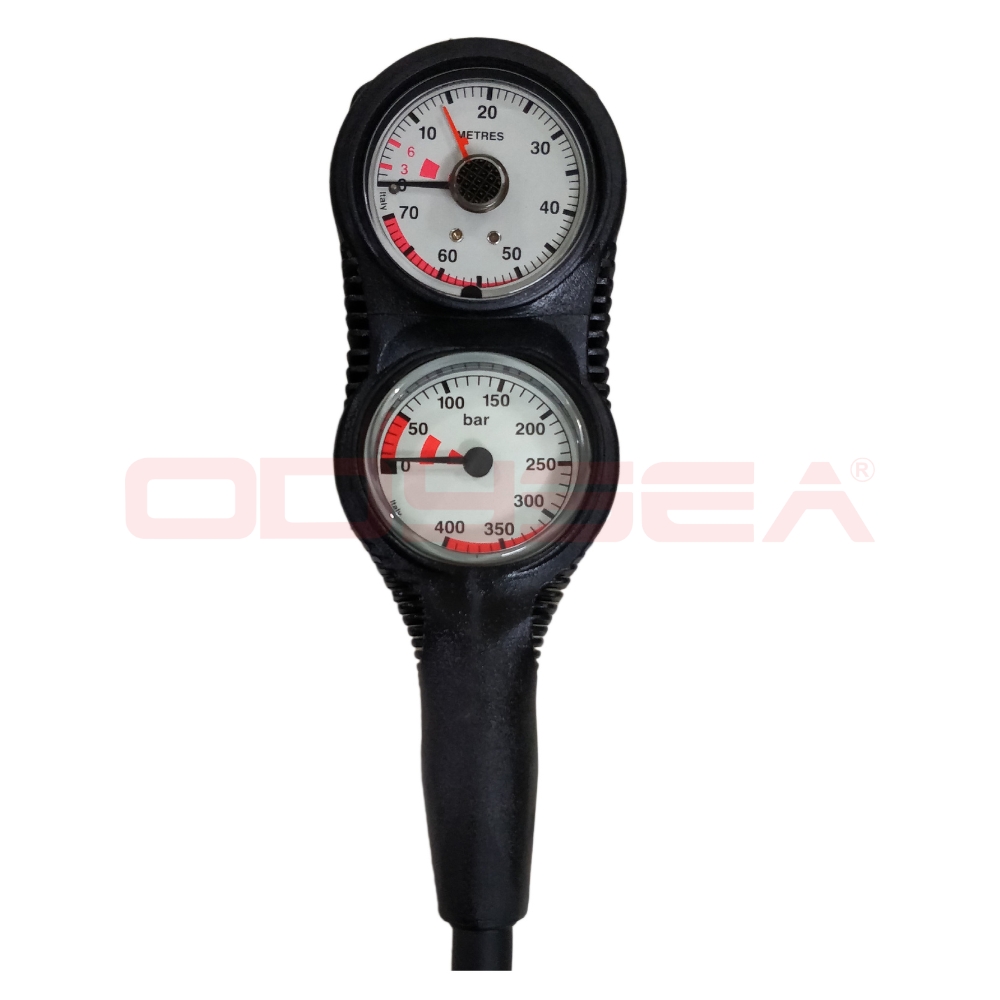

Mini Consol Gauge Consol 2
Mini Pressure Gauge Parts

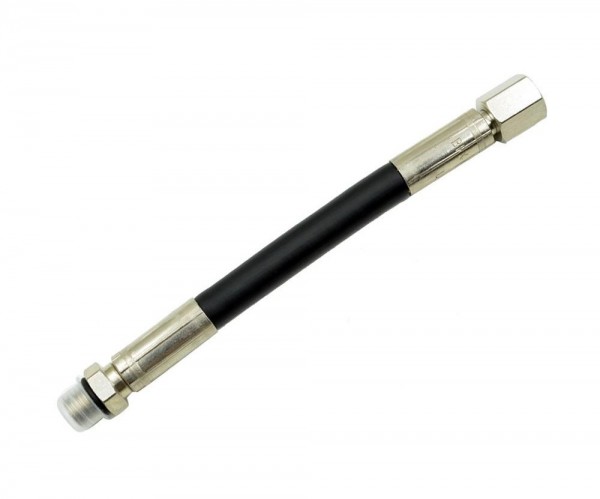

High Pressure Rubber Hose 6 inch / 15cm
For gauges, combos, and consoles
Length: 6” (15 cm)
HP Hose NBR Rubber
Male: 7/16-20
Female: 7/16-20
Working Pressure: 5000 psi / 207 bar
Color: Black
read more
Length: 6” (15 cm)
HP Hose NBR Rubber
Male: 7/16-20
Female: 7/16-20
Working Pressure: 5000 psi / 207 bar
Color: Black

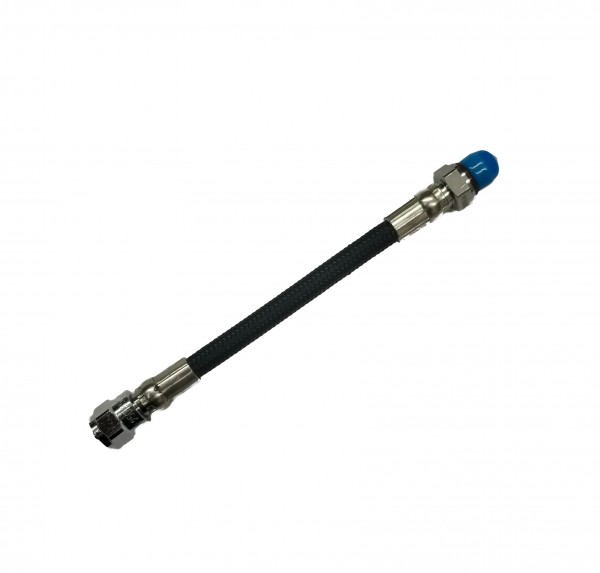

High Pressure Hose Braided 6 inch / 15cm
High Pressure Hose
Braided high pressure hose for pressure gauge
Durable, flexible, soft, and lightweight
Diameter 8mm
Length 15cm / 6 inch"
read more
Braided high pressure hose for pressure gauge
Durable, flexible, soft, and lightweight
Diameter 8mm
Length 15cm / 6 inch"
